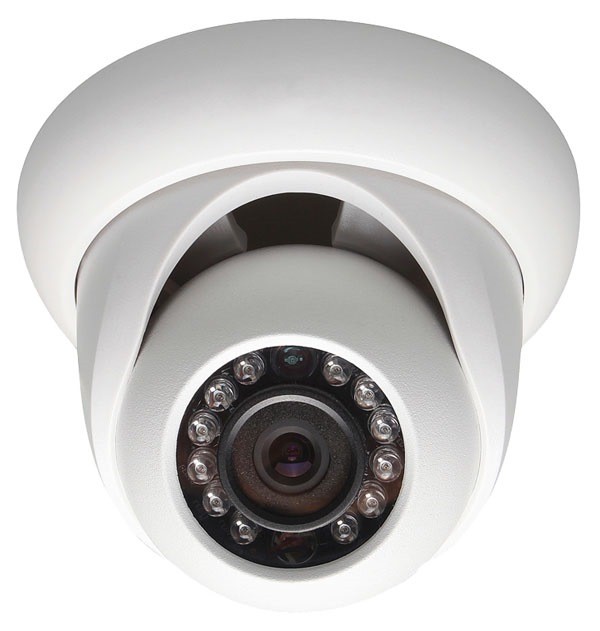

HELIXSON 5 MP, 2880P 4 in 1 (TVI/AHD/CVI/CVBS) Dome Indoor with 2.8 mm Lens

Image Sensor

1/2.7” 5MP PS CMOS Image Sensor

Minimum Illumination

0.02 Lux/F2.0, 30 IRE, 0 Lux IR on

Max. Resolution

2880 (H) × 1620 (V)

Shutter Speed

PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s

Angle Adjustment

Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°

White Balance

Auto, manual

Lens Mount

M12

Gain Control (AGC)

Auto

Max. Aperture

F2.0

Lens

2.8mm Fixed Lens

Close Focus Distance

2.8 mm: 0.8 m

DORI Distance

Lens 2.8mm: 80.0m (Detect), 32.0m (Observe), 16.0m (Recognize), 8.0m (Identify) Lens 2.8mm: 56.0m (Detect), 22.4m (Observe), 11.2m (Recognize), 5.6m (Identify)

Lens Type

Fixed

Angle of View

2.8 mm: 125° × 106° × 56°

Back Light Compensation

BLC, HLC, DWDR

Resolution

5M (2880×1620), 4M (2560×1440), 2M (1920×1080), 960H (960 × 576/960 × 480)

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Frame Rate

CVI: PAL: 5M@25 fps, 4M@25 fps, 2M@25 fps , NTSC: 5M@25 fps, 4M@30 fps, 2M@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps, TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps, CVBS: 960H

Noise Reduction

2D DNR

Iris Control

Fixed

Audio

External Mic

Privacy Mask

Off/On (8 areas, rectangle)

Audio Interface

External Mic

Day/Night

Auto (ICR)

Mirror Function

Support

IR Control

Auto, Manual

IR

IR Range of 30 Mtr.,

Smart IR

Support

Operating Humidity

<95% (RH), non-condensing

Operating Temperature

–40°C to +55°C (–40°F to +131°F)

Power Source

12 VDC ± 30%

Power Consumption

Max. 2.7W (12 VDC, IR on)

Dimension

85.4mm × 68.8mm

Casing

Plastic

Weight

0.09 kg
